X-Rite i1iSis 2 XL
Sale Price:$5,995.00
Regular Price:$6,735.00

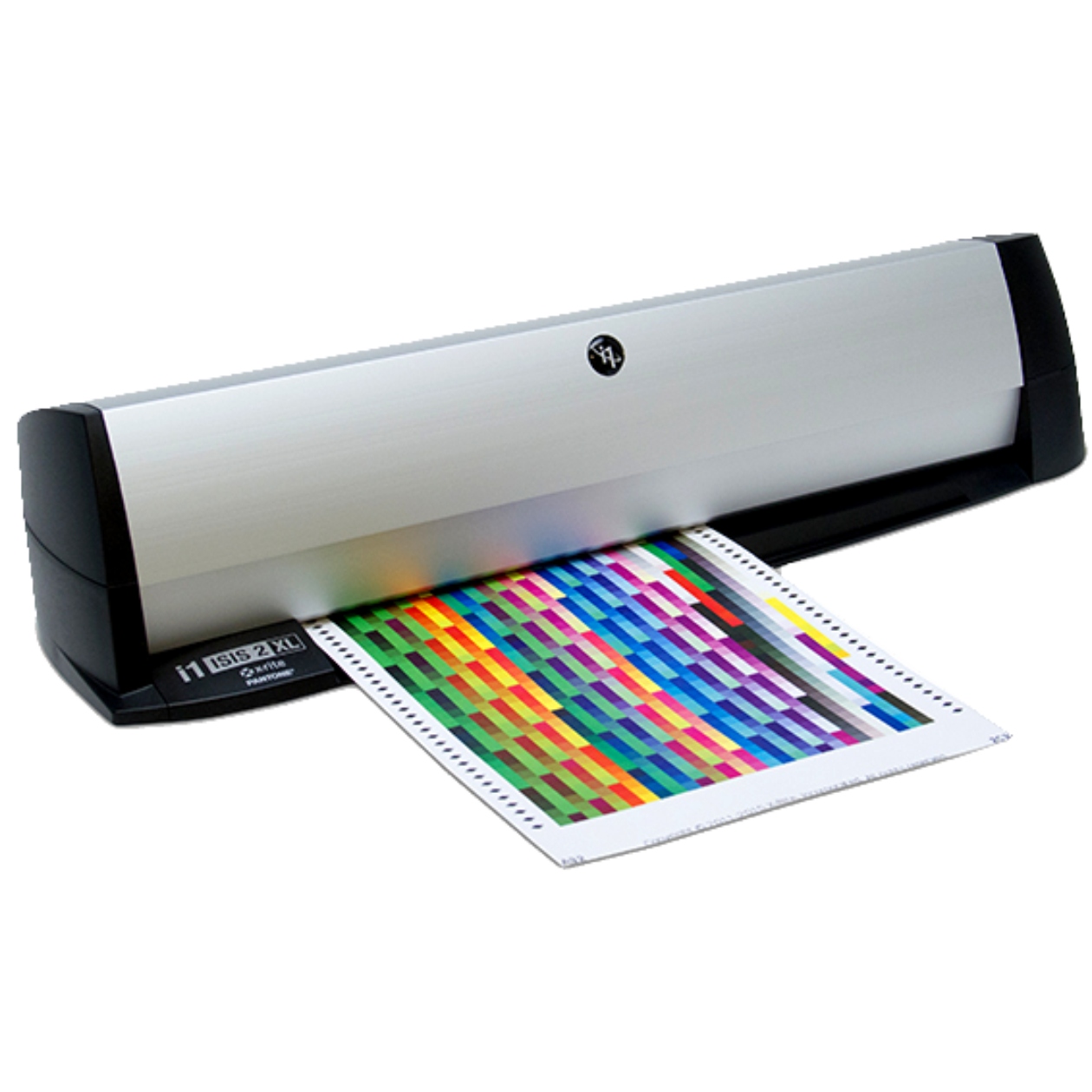

X-Rite i1iSis 2 XL Automated Chart Reader – HW-XRTEOISISXL
The X-Rite i1iSis 2 XL is an advanced automated spectrophotometer designed to dramatically speed up printer profile creation for large format, fine art, photo processing, and high-speed digital printing workflows. Built to handle A3 and tabloid-size charts, it measures up to 2,500 color patches in approximately 10 minutes, eliminating the time and variability associated with manual chart reading.
Supporting the latest ISO 13655 M-Series measurement standards, the i1iSis 2 XL ensures accurate color measurement across substrates with and without optical brightening agents. Simply print the chart, feed it into the device, and let the automated vision system handle alignment, identification, and measurement with minimal operator involvement.
Why Choose X-Rite i1iSis 2 XL Automated Chart Reader
- Automates printer profiling to save time and reduce labor
- Handles A3 and tabloid-size charts for wide format workflows
- Measures up to 2,500 patches in under 10 minutes
- Supports ISO-compliant M0, M1, and M2 measurement modes
- Ensures consistent color on papers with optical brighteners
Key Features
- A3 and Tabloid Chart Support: Designed for larger test charts used in wide format and production printing
- ISO M-Series Compliance: Captures M0, M1, and M2 measurements in a single chart cycle
- Optical Brightener Compensation: Works with i1Profiler software to ensure accurate color on OBA-containing substrates
- Automated Vision System: Corrects chart misalignment and reads barcodes automatically
- High Patch Capacity: Measures up to 2,500 color patches per chart
- XRGA Compliant: Ensures consistent inter-instrument agreement across color-managed workflows
Applications
- Large format and grand format printing
- Fine art and photographic production
- High-speed digital printing
- Proofing and prepress environments
- Any print operation requiring frequent, repeatable color profiling
Technical Specifications
- Measurement Conditions: M0, M1, and M2
- Spectral Range: 380 to 730 nm
- Spectral Reporting: 10 nm
- Photometric Range: 10 nm, sampling interval 3.5 nm (100 bands)
- Spectral Analyzer: i1 spectral technology with holographic diffraction grating and diode array
- Aperture: Effective measurement aperture depends on patch size during scanning
- Paper Size Supported: A3+
- Width: 2.4 to 13 in
- Length: 6.7 to 26 in
- Media Thickness: Typical 0.006 in, range 0.003 to 0.018 in
- Calibration: Automatic using internal calibration reference
- Optical Brightener Compensation: Supported with i1Profiler software
- Communication Interface: USB 1.1
- Connectivity: Powered USB port
- Experience Level: Intermediate to Advanced
- Software Development Kit: Available for OEM customers
- Dimensions: 20.5 x 6.3 x 4.7 in (width x depth x height)
- Weight: 8.6 lb (137.6 oz)
- Unit Color: Silver and Black
- Warranty: Twelve months from date of sale. Product registration required for technical support.
- Software Note: Software not included. Compatible with X-Rite i1Profiler or approved third-party solutions.
Need Help with Color Management?
Talk with a Big Systems specialist to confirm compatibility, workflow fit, and whether the X-Rite i1iSis 2 XL Automated Chart Reader is the right solution for your print environment.
Additional information
| Weight | 8.6 lbs |
|---|---|
| Dimensions | 6.3 × 20.5 × 4.7 in |
