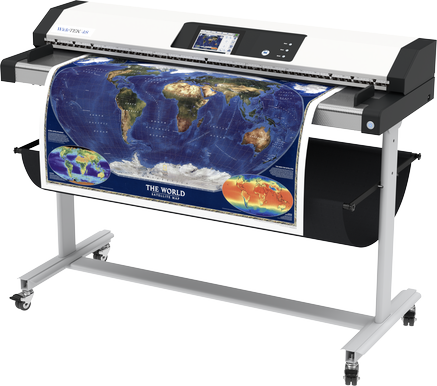

Image Access WideTEK 44 Wide Format Scanner

WideTEK 44 – Wide Format CCD Scanner for documents up to 44 inch widths WT44-600-BDL

WideTEK 44 is a high-performance 44 inch wide format CCD scanner engineered for fast, accurate digitizing of technical documents, maps, posters, and fragile originals. Designed for daily production use, it combines acclaimed WideTEK camera technology with redesigned electronics that deliver faster processing, quicker start times, and an improved operator experience.

Why Choose the WideTEK 44

• CCD image quality for demanding detail: Four high-quality CCD cameras with bright white LED illumination capture sharp linework and smooth color transitions for technical and graphic originals.
• Production-ready reliability: Dust-protected, encapsulated optical components and no consumables support long service life and consistent output.
• Standalone scanning with Scan2Net software: The integrated 64-bit Linux PC enables scanning to network destinations and USB without requiring an external computer.
• Faster, modernized hardware: Intel Core Gen 9 processing and a fast SSD help accelerate internal processing and overall responsiveness.
• Operator-friendly control: A high-resolution 7 inch multi-touch display and optional dark mode support comfortable daily use.
• Investment-friendly growth path: Ideal for teams that need 44 inch capture today and want the option to step up to a larger format later.

---

Applications

• Architecture, engineering, and construction plans
• CAD drawings and technical documentation
• GIS maps and utilities documentation
• Universities, libraries, registries, and public sector archiving
• Reprographics and copy service environments
• Historical and fragile document digitization

---

Key Features

• Scans documents up to 44 inches wide
• CCD camera system with bright white LED illumination
• Automatic crop and deskew
• On-the-fly rotation while scanning
• Face-up scanning for easier handling and viewing
• Real-time image preview and adjustment without rescanning
• Standalone system with integrated PC and Scan2Net software
• Walk-up scanning to USB
• Scan to network locations (SMB, FTP)
• Scan2Pad support for control via tablet or smartphone
• Remote maintenance and firmware updates via web interface
• High-resolution 7 inch multi-touch display
• Configurable dark mode

---

Specifications

Document Handling

• Maximum Scan Width: 44 in
• Maximum Document Thickness: 0.1 in
• Automatic Size Recognition: Yes
• Formats: DIN A5 through DIN A0, Legal, US E, plus user-defined

Resolution and Quality

• Scanner Resolution: 1200 x 1200 dpi (optional interpolated modes may be available)
• Output Color Depth: 24-bit color, 8-bit grayscale, bitonal options supported
• Designed for production scanning with consistent accuracy and sharpness

Speed

• High-speed scanning designed for production environments
• Typical published performance includes up to 11.2 in/sec at 200 dpi in full width operation

System and Interface

• Scan2Net software with integrated 64-bit Linux PC
• 7 inch multi-touch display
• Network-enabled operation via browser-based interface
• Remote service and firmware updates via web interface
• Scan2Pad mobile operation supported

Dimensions and Weight

• Scanner Dimensions (approx.): 56.1 W x 20 D x 9 H in
• Scanner Weight (approx.): 117 lb
• Bundle weight (approx., including stand and touchscreen): 176 lb

---

What’s Included in WT44-600-BDL Bundle

• WideTEK 44 scanner
• Floor stand with catch basket or support hardware (bundle configuration)
• Touchscreen monitor (bundle configuration)
• Scan2Net software suite for standalone scanning

Get Production-Ready Wide Format Scanning

Bring fast, accurate 44 inch scanning into your environment with a CCD platform built for daily use. Contact Big Systems to confirm bundle configuration, installation requirements, and best practices for your document types and output destinations.
