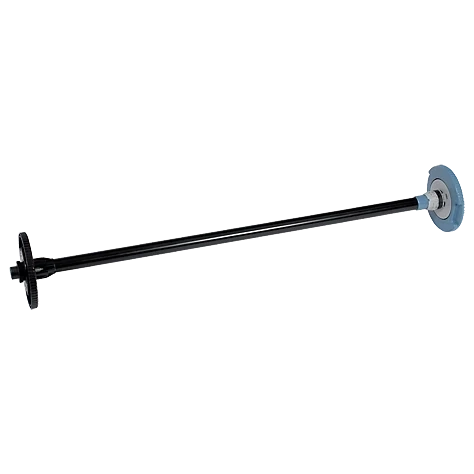

HP Spindle 54in for HP Latex L115 L310 & L315 Printer

HP Spindle 54in F0M55A for HP Latex L115 L310 & L315 Printer

HP Spindle 54in F0M55A is a genuine HP media handling accessory designed to expand the range of compatible substrates for HP Latex printers. While many HP Latex models ship standard with a 3 inch core spindle, this optional spindle allows users to safely and reliably run 54 inch media rolls with a 2 inch core, opening the door to additional media options and cost-effective materials.

The spindle is precision engineered to support smooth loading, stable rotation, and consistent media tracking throughout long print runs. Its rigid construction minimizes deflection and helps maintain proper tension, which is critical for avoiding skewing, feeding issues, or print defects on wide format jobs.

This spindle is ideal for production environments that frequently switch between media types or source substrates from multiple suppliers. By eliminating the need for adapters or manual core conversions, the HP Spindle 54in F0M55A helps streamline workflows, reduce downtime, and maintain professional print quality across applications.

Important Note:
HP Latex 110, 115, 310, and 315 printers include a 3 inch spindle as standard equipment. The F0M55A is an additional accessory, not a replacement, and is required specifically when running 2 inch core media.

Why Choose HP Spindle 54in F0M55A

HP Spindle 54in is designed to improve workflow flexibility while maintaining the media handling precision HP Latex printers are known for.

This accessory allows operators to confidently expand their media library without compromising print consistency.

• Supports 54 inch wide media rolls with a 2 inch core
• Expands access to additional media types and suppliers
• Eliminates the need for adapters or core conversions
• Improves media loading speed and changeover efficiency
• Maintains consistent media tension and tracking
• Built for high-volume, production-level environments
• Genuine HP accessory engineered for long-term reliability

---

Applications

• Banners
• Exterior signage
• Window, wall, and floor graphics
• Temporary displays
• Automotive graphics
• Short-run and production wide format printing

---

Compatibility

• HP Latex 110
• HP Latex 115
• HP Latex 310
• HP Latex 315
• HP Latex 360

Compatibility Details
These HP Latex printers are designed with interchangeable spindle support to accommodate different media core sizes. Using the correct spindle ensures proper media alignment, consistent tension, and reliable feeding. The F0M55A spindle allows operators to safely run 2 inch core media without risking tracking issues, head strikes, or wasted material.

---

Specifications

• Product Type: Media Spindle
• HP Part Number: F0M55A
• Media Width: 54 inches
• Core Size: 2 inch
• Weight: 6.83 lbs (3.1 kg)
• Dimensions (W × D × H): 6.89 × 59.8 × 6.89 in (175 × 1520 × 175 mm)
• Package Weight: 12.3 lbs (5.6 kg)
• Country of Origin: Malaysia

Expand Media Flexibility Without Compromise

Add support for 2 inch core media and simplify your workflow with the HP Spindle 54in, a genuine HP accessory built for reliable, production-grade wide format printing.
